solar battery backup power station power pack for home outdoor adventures 100w

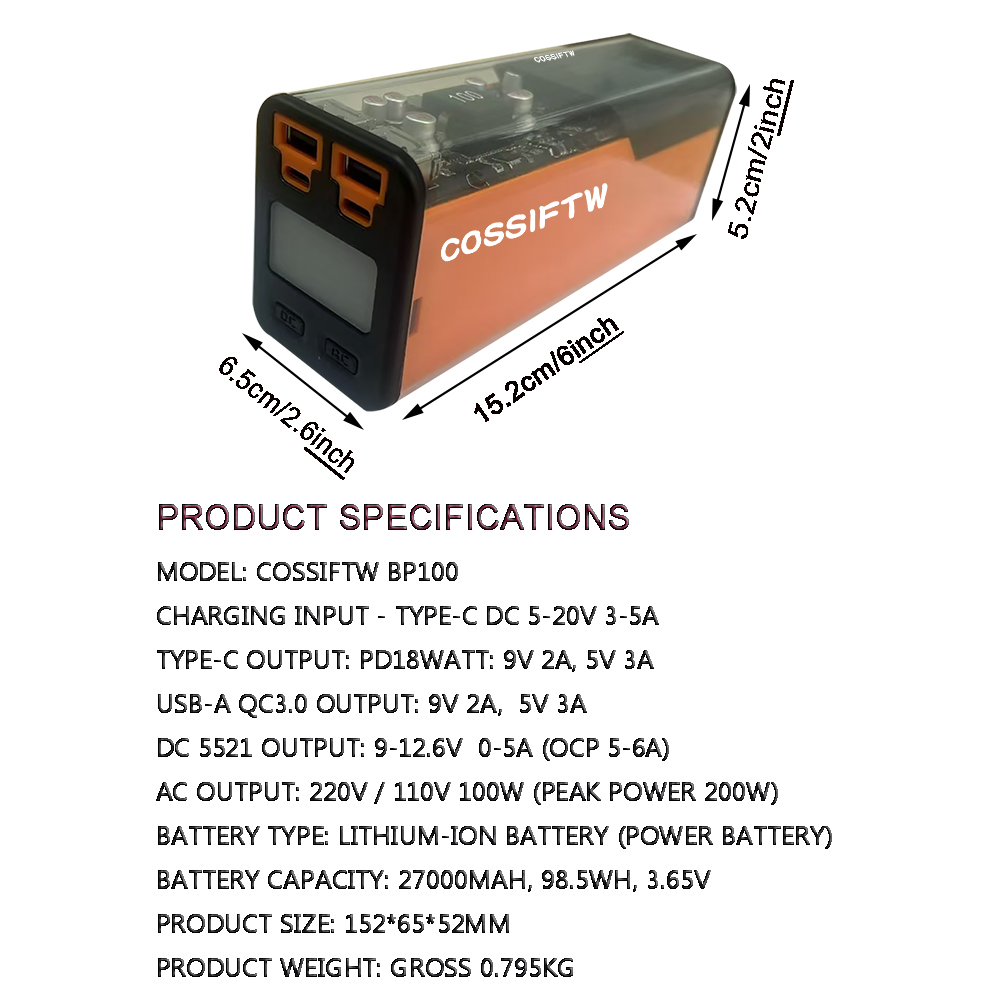

BP-100P Portable Power Supply Specification 1. Product Specification Model: COSSIFTW BP100 Name: 100W Portable Power Supply 2. Product Description This product is a portable power supply, suitable for home emergency backup power, outdoor travel, and work applications. It features multiple voltage outputs: - AC 220V Or 110V (Pure sine wave) / 100W - USB QC3.0 / 18W x 2 - Type-C PD18W x 1 - Bidirectional Type-C PD100W - DC 12V/5A 3. Product Specifications 3.1 Charging Input - Type-C input voltage: DC 5-20V - Current: 3-5A - Maximum Charging Power: 100W - Charger Type: PD3.0 compliant 3.2 Type-C PD 100W Output - Output voltages: 20V, 15V, 12V, 9V, 5V - Output currents: 5A, 3A, 3A, 3A, 3A 3.3 Type-C PD18W Output - Output voltages: 9V, 5V - Output currents: 2A, 3A 3.4 USB-A QC3.0 Output - Output voltages: 9V, 5V - Output currents: 2A, 3A 3.5 DC 5521 Output - Voltage: 9-12.6V - Current: 0-5A (OCP 5-6A) 3.6 AC220V Output - Voltage: AC220V (Pure sine wave) - Rated power: 100W (Peak power 200W) - Frequency: 50Hz (THD<3%) 3.7 Battery Specifications - Material: Lithium-ion battery (power battery) - Capacity: 27000mAh, 98.5Wh, 3.65V - Battery configuration: 3-series Packing details: Single product packaging size: 178*75*58mm, Full box packing details: a box of 10 sets, size 320*195*180mm
4. Button Function Description Function Triggers: - USB C1 will automatically power on when a PD device is connected. - DC/USB buttons trigger the output with different settings for on/off. 5. Display Icons Icons display information on the charging, discharging, and output status. 6. Sleep Function Automatically switches off unused functions like AC or USB after set idle times. 7. Safety Protections 7.0 Battery Temperature Protection - Discharge temperature: -10℃ to +60℃ - Charge temperature: -10℃ to +55℃ 7.1 AC Output Short Circuit, Overload Protection AC output will protect itself from overload or short circuits. 7.2 Lithium Battery Overcharge and Overdischarge Protection Software and hardware protection for the battery. 8. Operating and Storage Conditions 8.1 Operating Temperature -10℃ to +45℃ 8.2 Storage Temperature and Humidity Storage Temperature: -20℃ to +55℃
